In today’s fast-paced business environment, reliable and high-performance wireless connectivity is no longer a luxury, but a necessity. Enterprises are increasingly relying on Wi-Fi networks to support critical applications such as video conferencing, cloud computing, IoT devices, and mobile productivity. However, large offices, factories, campuses, and retail locations often face insufficient coverage and signal attenuation due to complex layouts, numerous interference sources, and high client density. To bridge these gaps, Wi-Fi repeaters (also known as extenders) play a vital role. At Toda, we specialize in designing and deploying advanced wireless solutions that meet the needs of enterprises. In this guide, we share proven strategies to ensure your Wi-Fi repeater deployment provides seamless, secure, and scalable coverage.
1. Conduct a thorough site assessment
A successful deployment begins with a comprehensive site assessment. Key steps include:
Draw a Floor Plan: Obtain an accurate blueprint or CAD drawing of your facility, including walls, partitions, machinery, and major furniture layouts.
Identify dead zones: Use spectrum analyzers and heat map tools to locate areas of weak signal or high interference. Common sources of interference include metal racks, thick concrete walls, and heavy machinery.
Estimate client density: Determine how many devices (laptops, IP phones, smartphones, scanners, IoT sensors) will be connected to each area during peak hours. High-density areas require special attention.
Document sources of interference: Document sources of RF noise, such as microwave ovens, cordless phones, Bluetooth devices, and nearby wireless networks. This information helps with channel planning and placement decisions.
At Toda, our field engineers use a combination of site surveys and advanced simulation software to predict coverage before any hardware is installed. This minimizes guesswork and ensures repeaters are positioned for optimal performance.
2. Choose the correct repeater model and frequency band configuration
Today’s enterprise-class Wi-Fi repeaters support multiple bands and advanced features. Consider the following:
Dual-band and Tri-band Repeaters:
Dual-band (2.4 GHz + 5 GHz): Cost-effective for medium-density environments.
Tri-band (2.4 GHz + 5 GHz + dedicated backhaul 5 GHz/6 GHz): Recommended for high-density or high-throughput applications. The dedicated backhaul channel prevents client traffic from clogging the repeater’s uplink, preserving full bandwidth for downstream devices.
Supported Wi-Fi standards:
802.11ac (Wi-Fi 5): Performs well for most enterprise applications and supports MU-MIMO.
802.11ax (Wi-Fi 6/6E): Ideal for the future. Features like OFDMA and BSS coloring improve efficiency in dense deployments.
6 GHz band (Wi-Fi 6E): If your repeaters and client devices support 6 GHz, you can take advantage of the additional spectrum to achieve ultra-low latency and minimal interference.
Power over Ethernet (PoE) support: Use PoE to deploy repeaters in ceilings or remote locations where power outlets are not available. Toda’s PoE-compatible models simplify installation and reduce wiring costs.
By selecting repeaters that match your organization’s performance requirements and expected growth, you can ensure that your network can adapt to changing needs.
3. Optimize repeater locations and backhaul connections
Proper physical placement is critical. Follow these best practices:

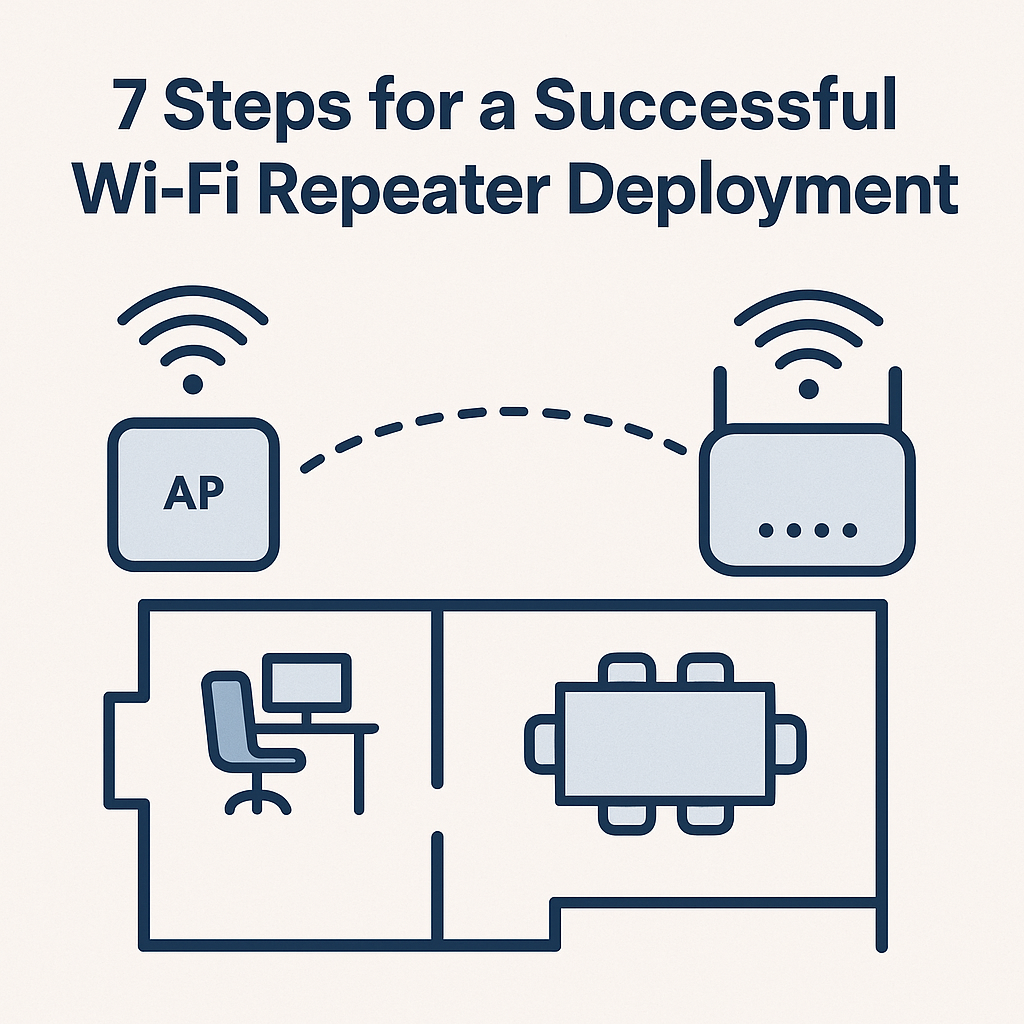

Midpoint placement: Place the repeater approximately midway between the existing access point (AP) and the coverage hole. This ensures that the repeater receives a strong uplink signal and amplifies it.
Avoid physical obstructions: Repeaters should be placed away from metal objects, thick walls, or mechanical equipment that may absorb or reflect RF signals. Ideally, the mounting point should be in an open ceiling, corridor, or elevated wall.
Leverage dedicated backhaul: In a tri-band deployment, allocate one band exclusively for repeater-to-AP backhaul. Reserve the remaining band for client connections. This separation maximizes throughput and minimizes latency.
Maintain proper spacing: Ensure that adjacent repeater coverage areas overlap to avoid roaming dead zones, but avoid placing devices too close to each other to avoid co-channel interference.
Toda’s wireless architects used predictive models to simulate coverage and guide installers to the best installation locations. Spectrum analysis tools were then used for field verification to confirm the predicted coverage.
4. Implement intelligent channel and power management
Effective channel planning and power adjustment minimize interference and maximize performance:
Automatic channel selection: Many modern repeaters support automatic DFS (Dynamic Frequency Selection) channels within the 5 GHz or 6 GHz bands to bypass radar signals and other sources of interference.
Static channel assignment: In extremely congested environments, manually assign non-overlapping channels to APs and repeaters. For example, use channels 36, 40, 44, and 48 in a 5 GHz deployment.
Transmit Power Control (TPC): Adjusts repeater transmit power to balance coverage and reduce co-channel interference. In dense deployments, lowering the power setting may improve overall network stability.
Band Steering: Enable the band steering feature so that dual-band clients automatically connect to the less crowded 5 GHz or 6 GHz band, reserving the 2.4 GHz band for legacy or low-bandwidth devices.
By fine-tuning channel assignments and transmit power, Toda helps enterprises achieve maximum capacity and reliability, even in RF-dense manufacturing facilities or multi-tenant offices.
5. Design a secure, segmented wireless network
Security is critical when using repeaters to extend wireless coverage:
Use separate SSIDs for backhaul and client access: Configure a hidden SSID or a backhaul with VLAN tags that only repeaters and APs can join. Use a different SSID for end-user access to prevent Layer 2 bridging attacks.
VLAN Tagging: Tag traffic from different groups of devices (e.g. office workstations, VoIP phones, and IoT sensors) onto separate VLANs. Toda repeaters fully support 802.1Q, ensuring traffic segmentation remains intact throughout the extended network.
Enterprise Authentication: Enforces WPA3-Enterprise or WPA2-Enterprise (802.1X) authentication for end users. This prevents unauthorized devices from accessing the network through a repeater.
Firmware Hardening: Enable secure management interfaces (HTTPS, SSH) on the repeater and require a strong administrator password. Toda periodically releases firmware updates to patch vulnerabilities and enhance security features.
A well-segmented, proven wireless infrastructure can protect critical business systems and sensitive data, even when coverage extends to the far corners of a facility.
6. Centralized management and monitoring
Continuous visibility and control are critical for large-scale deployments:
Cloud-based dashboard: Toda’s cloud management platform consolidates repeater and access point status, traffic analysis, and client association information in real time. Administrators can identify signal bottlenecks, rogue devices, and bandwidth hogs through a single pane of glass.
Automated alerts: Configure alerts for high client density, RF interference spikes, or unauthorized access attempts. Proactive notifications help IT teams resolve issues before they impact productivity.
Scheduled maintenance and updates: Automatically perform firmware upgrades, configuration backups, and device reboots during off-hours. Scheduled maintenance ensures your network remains secure and efficient without disrupting operations.
Centralized management simplifies large-scale deployments, especially on multi-building campuses, ensuring consistent policies and rapid troubleshooting.
7. Continuous performance tuning and expansion
A successful Wi-Fi repeater deployment is not a one-time project; it requires regular review:
Regular site reassessment: Re-conduct heatmap surveys quarterly or when major layout changes occur (e.g., new walls, machines, furniture). Adjust repeater positions or add additional equipment to maintain seamless coverage.
Capacity Planning: Analyze usage trends—number of clients during peak hours, throughput requirements, and growth forecasts. Plan incremental repeater additions or AP upgrades to support new departments, new production lines, or IoT deployments.
User experience validation: Gather feedback from end users (especially remote workers, warehouse employees, or quality inspectors) to understand any potential blind spots or performance delays. Resolve issues promptly to keep satisfaction high.
By taking a lifecycle approach, Toda ensures your enterprise wireless network scales smoothly and delivers consistent performance as your business needs evolve.
Why enterprises choose Toda’s Wi-Fi repeater solutions
Industry Expertise: With decades of experience serving enterprise clients around the world, Toda understands the unique challenges of large-scale wireless deployments.
End-to-end solutions: From site surveys to managed services, we offer a complete portfolio – including access points, switches and controllers – that integrate seamlessly with our repeaters.
Customization and support: Our engineering team tailors each deployment to your environment, and our 24/7 support ensures a quick response to any network issues.
Future-proof Technology: Toda’s repeaters support the latest Wi-Fi 6/6E standards, ensuring your wireless network remains cutting-edge and scalable.
in conclusion
Strategically deploying Wi-Fi repeaters is critical for enterprises seeking comprehensive wireless coverage, reliability, and security. By following a structured approach (site assessment, hardware selection, optimal placement, channel planning, secure segmentation, centralized management, and ongoing tuning), organizations can eliminate dead zones, support mission-critical applications, and deliver an exceptional user experience.
At Toda, we are committed to providing world-class wireless solutions for enterprises. If you are planning to expand your enterprise Wi-Fi network or optimize your existing deployment, contact our experts today to learn how Toda’s repeater solutions can revolutionize your connectivity experience.
