TH-310-2G4F Industrial Ethernet Switch
TH-310-2G4F is a high-performance industrial Ethernet switch with a focus on reliability, speed, security, and easy maintenance. Equipped with 4x10/100Base-TX RJ45 ports, 4x100BASE-FX fiber ports (SC/ST/FC), and 2x1000M combo ports, this switch is capable of transmitting data at high speeds over both copper and fiber-optic cables. Its rugged design allows it to withstand harsh industrial environments, with operating temperatures ranging from -40 to 75°C and protection against shock, vibration and electromagnetic interference.
● 8×10/100ase-TX RJ45 ports and 2x 1000Mbps Combo Ports
● Support 1Mbit packet buffer
● Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x
● Support redundant dual power input 12~36VDC
● -40~75°C operation temperature for harsh environment
● IP40 Aluminum case, no fan design
● Installation method: DIN Rail /Wall mounting
| Model Name | Description |
| TH-310-2G | Industrial unmanaged switch with 8×10/100Base-TX RJ45 ports and 2x1000MCombo Ports,dual power input voltage 12～36VDC |
| TH-310-2G4F | Industrial unmanaged switch with 4×10/100Base-TX RJ45 ports, 4x100BASE-FXFiber ports(SC/ST/FC) and 2x1000M Combo Ports, dual power input voltage 12～36VDC |
| Ethernet Interface | ||
| Ports | 4×10/100Base-TX RJ45 ports,4x100BASE-FX Fiber ports(SC/ST/FC) and 2x1000M Combo Ports | |
| Power input terminal | Four-pin terminal with 5.08mm pitch | |
| Standards | IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
|
| Packet Buffer Size | 3M | |
| Maximum Packet Length | 10K | |
| MAC Address Table | 2K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time < 7μs | |
| Backplane bandwidth | 8.8Gbps | |
| Power | ||
| Power Input | Dual power input 12-36VDC | |
| Power consumption | Full Load<10W | |
| Physical Characteristics | ||
| Housing | Aluminum case | |

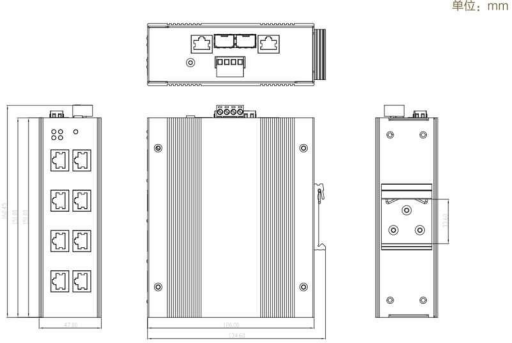

| Dimensions | 151mm x 134mm x 47mm (L x W x H) | |
| Weight | 450g | |
| Installation Mode | DIN Rail and Wall Mounting | |
| Working Environment | ||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | |
| Warranty | ||
| MTBF | 500000 hours | |
| Defects Liability Period | 5 years | |
| Certification Standard | FCC Part15 Class ACE-EMC/LVD
ROSH IEC 60068-2-27（Shock） |
IEC 61000-4-2（ ESD）： Level 4IEC 61000-4-3（RS）： Level 4
IEC 61000-4-2（EFT）： Level 4 IEC 61000-4-2（Surge）： Level 4 |
| IEC 60068-2-6（Vibration） | IEC 61000-4-2（CS）： Level 3 | |
| IEC 60068-2-32（Free fall） | IEC 61000-4-2（ PFMP）： Level 5 | |
