TH-G512-8E4SFP Industrial Ethernet Switch
TH-G512-8E4SFP is a new generation Industrial Managed Power over Ethernet Switch with 8-Port 10/100/1000Bas-TX and 4-Port 100/1000 Base-FX Fast SFP that is designed to meet the needs of industrial applications, with a durable aluminum case and support for DIN rail and wall mounting.
It also supports IEEE 802.3af/at PoE standards, with a maximum consumption of 30W per port, making it suitable for powering PoE-enabled devices such as IP cameras and wireless access points.
It suitable for harsh industrial environments, such as factories and outdoor installations. Overall, TH-G512-8E4SFP is a versatile and reliable switch that can meet the demanding requirements of industrial applications
● 8×10/100/1000Base-TX PoE RJ45 ports with 4×100/1000Base-FX Fast SFP ports. This powerful networking device is designed to meet the demands of modern businesses, offering reliable connectivity and efficient data transfer.
● Equipped with 8 RJ45 ports, this product allows for seamless integration of multiple devices with maximum speed and ease. Additionally, it features 4 Fast SFP ports that support both 100 and 1000Base-FX connections, enabling fast and stable fiber optic connections for long-distance data transmission.
● To enhance its performance, our product supports a 4Mbit packet buffer, ensuring smooth and uninterrupted data flow. It also boasts compatibility with 10K bytes jumbo frame, enabling the transmission of large files and enhancing overall network efficiency.
● We understand the importance of energy efficiency in today’s world, which is why our product is equipped with IEEE802.3az energy-efficient Ethernet technology. This feature allows
| Model Name | Description |
| TH-G512-4SFP | Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports and 4×100/1000Base-FX SFP ports, dual power input voltage 9～56VDC |
| TH-G512-8E4SFP | Industrial managed switch with 8×10/100/1000Base-TX POE RJ45 ports and 4×100/1000Base-FX SFP ports, dual power input voltage 48～56VDC |
| TH-G512-4SFP-H | Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports and 4×100/1000Base-FX SFP ports single power input voltage 100～240VAC |
| Ethernet Interface | ||
| Ports | 8×10/100/1000BASE-TX POE RJ45, 4×100/1000BASE-X SFP | |
| Power input terminal | Six-pin terminal with 5.08mm pitch | |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
|
| Packet Buffer Size | 4M | |
| Maximum PacketLength | 10K | |
| MAC Address Table | 8K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time < 7μs | |
| Backplane bandwidth | 24Gbps | |
| POE（optional） | ||
| POE standards | IEEE 802.3af/IEEE 802.3at POE | |
| POE Consumption | max 30W per port | |
| Power | ||
| Power Input | Dual power input 9-56VDC for non-POE and 48~56VDC for POE | |
| Power consumption | Full Load<15W （non-POE); Full Load<495W （POE) | |
| Physical Characteristics | ||
| Housing | Aluminum case | |

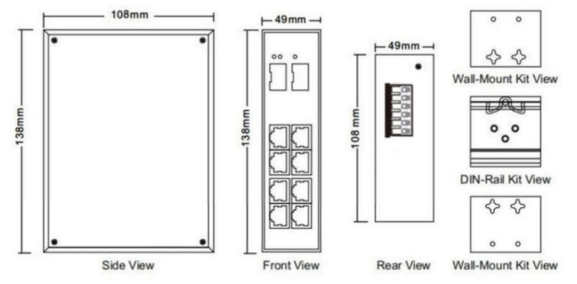

| Dimensions | 138mm x 108mm x 49mm (L x W x H) | |
| Weight | 680g | |
| Installation Mode | DIN Rail and Wall Mounting | |
| Working Environment | ||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | |
| Warranty | ||
| MTBF | 500000 hours | |
| Defects Liability Period | 5 years | |
| Certification Standard | FCC Part15 Class A
CE-EMC/LVD ROSH IEC 60068-2-27（Shock） IEC 60068-2-6（Vibration） IEC 60068-2-32（Free fall） |
IEC 61000-4-2（ESD）： Level 4
IEC 61000-4-3（RS）： Level 4 IEC 61000-4-2（EFT）： Level 4 IEC 61000-4-2（Surge）： Level 4 IEC 61000-4-2（CS）： Level 3 IEC 61000-4-2（PFMP）： Level 5 |
| Software Function | Redundant Network：support STP/RSTP，ERPS Redundant Ring，recovery time < 20ms | |
| Multicast ：IGMP Snooping V1/V2/V3 | ||
| VLAN：IEEE 802.1Q 4K VLAN，GVRP ,GMRP,QINQ | ||
| Link Aggregation：Dynamic IEEE 802.3ad LACP LINK Aggregation, Static Link Aggregation | ||
| QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA | ||
| Management Function: CLI, Web based management, SNMP v1/v2C/V3, Telnet/SSH server for management | ||
| Diagnostic Maintenance: port mirroring, Ping Command | ||
| Alarm management: Relay warning, RMON, SNMP Trap | ||
| Security: DHCP Server/Client，Option 82， support 802.1X，ACL ,support DDOS， | ||
| Software update via HTTP, redundant firmware to avoid upgrade failure | ||
