300Mbps Outdoor Access Point
QCA9531 Chipset, 802.11b/g/n Support
High Power Wi-Fi Coverage AP 360° Omnidirectional Coverage
Adjustable transmission power from 0 to 30dBm/1000mw
AP Mode, Router Mode, WDS Repeater, Universal Repeater, access point
Outdoor stabilized enclosure with IP66 waterproof

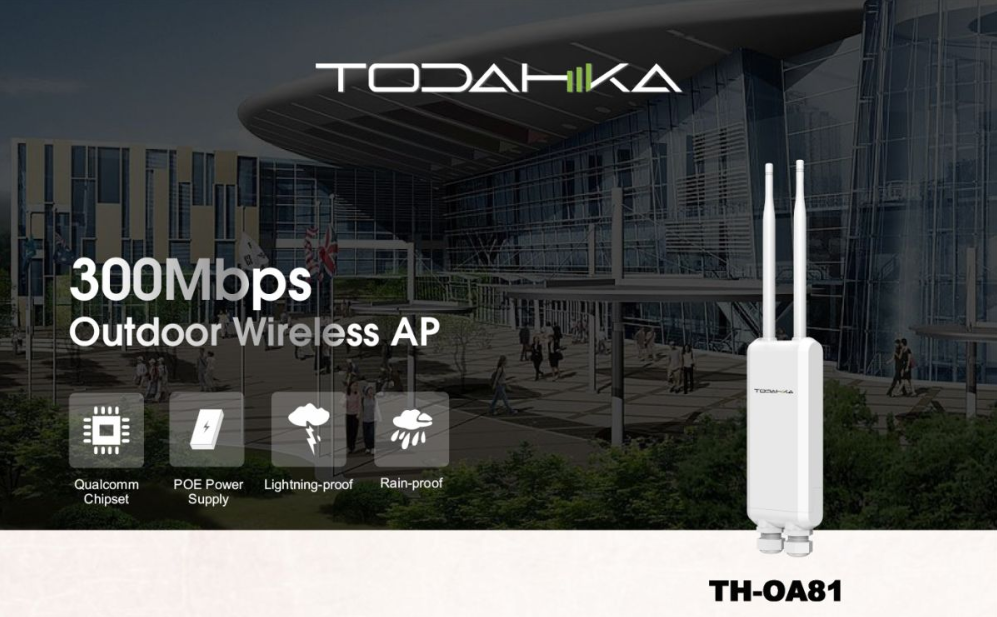

TH-OA81 is our cost-effective 300Mbps outdoor omnidirectional access point powered by QCA9531 chip, IP66 weatherproof housing. Transmit power can be manually tuned to prevent RF interference. It is widely used for campus, parking lot and park WiFi coverage. It is the preferred budget model for standard outdoor wireless deployment.
TH-OA81 300Mbps Wireless Outdoor AP
| Parameter | Specification |
|---|---|
| Hardware Specification | Qualcomm QCA9531; 650Mhz Industrial Grade CPU; DDR: 64MB; Flash: 16MB; PA Chipset: SKY65900 * 2; With machine:76+ |
| Antenna | External 2*5dBi Antennas |
| Wireless Standard | IEEE802.11b/g/n Standards |
| RF Parameters | Output Power (Max): 1000mW(30dBm); Receiving Sensitivity (Max): -96dBm; Frequency: 802.11b/g/n : 2.412GHz-2.484GHz |
| Modulation Mode | DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; MIMO-OFDM: MCS 0-15 |
| Transmission Rate | 11b: 1, 2, 5.5, 11Mbps; 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 11n: MCS0-MCS15(20MHz and 40MHz Analog Bandwidth); 20MHz: 144.4Mbps; 40MHz: 300Mbps |
| Physical Ports | 1*10/100Mbps WAN RJ45 Ethernet Port; 2*10/100Mbps LAN RJ45 Ethernet Port; Support 24V POE power supply; 1*Reset Buttons /1*DC |
| Indicator | WiFi/Power/Network port 3 signal strength indicators |
| Power | Power Supply: 802.3af/at POE Power Supply(0-100m); Power Adapter: 24V 0.5A POE Power Adapter(Configured) |
| Power Consumption(Max) | <8W |
| IP Index | IP66 |
| MTBF | >250000H |
| Installation Way | Wall-mounted / Pole-mounted |
| Case | Plastic Case (Imported ABS Material) |
| Physical Features | Size: 90mm*388.2mm |
| Working Environment | Working Temperature: -40℃~55℃; Storage Temperature: -40℃~70℃; Working Humidity: 10%~90%RH Non-condensing; Storage Humidity: 5%~90%RH Non-condensing |
Application Scenarios
TH-OA81 outdoor wireless access point is designed for general outdoor wireless coverage and wireless surveillance backhaul projects. With IP66 weatherproof ABS housing and 30dBm adjustable transmit power, it delivers stable 2.4GHz WiFi signal for medium-range deployment. It is widely adopted in the following projects:
✅ Campus & School Outdoor WiFi Coverage Suitable for playgrounds, walkways and outdoor rest areas of schools and university campuses, providing reliable wireless access for teachers and students.
✅ Parking Lot Wireless Network Deploy in open-air parking lots of shopping malls, industrial parks and residential communities to extend WiFi coverage.
✅ Scenic Spots & Tourist Attractions Build public WiFi for tourist trails, viewing platforms and service stations in scenic areas.
✅ Factory Yard & Construction Site Temporary Network Ideal for factory outdoor yards and short-term construction sites to set up wireless network and transmit camera video streams.
✅ Residential Community Public WiFi Wireless coverage for residential compound courtyards and shared outdoor zones.
Note: TH-OA81 is built for standard outdoor environments. For projects requiring IP67 protection, stronger lightning protection or ultra-long-distance transmission, please check our high-power model TH-OA700.
