TH-4F Series Industrial Ethernet Switch
TH-4F Series Industrial Ethernet Switch uses store-forward architecture, fan-less and energy-saving design.
The advantage of product is small, convenient and easy to maintain.
It provides basic plug-and-play connectivity for network-enabled devices and offer a ruggedized design to withstand harsh environmental conditions, as well as support for industry-standard protocols such as Modbus or PROFINET.
They are often used in simple industrial automation applications, such as connecting programmable logic controllers (PLCs), sensors, and other automation devices to a network.
● Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
● Auto-MDI/MDI-X detection and negotiation in half-duplex/full-duplex modes for 10/100Base-TX RJ-45 port
● Features Store-and-Forward mode with wire-speed filtering and forwarding rates
● Supports packet size of up to 2K bytes
● Robust IP40 protection, fan-less design, high/low temperature resistance -30℃~ +75℃
● Wide power supply input DC12V-58V redundant
● CSMA/CD protocol
● Automatic source address learning and aging
| P/N | Description |
| TH-4F0005 | Unmanaged Industrial Switch, 5×10/100M RJ45 Port |
| TH-4F0008 | Unmanaged Industrial Switch, 8×10/100M RJ45 Port |
| TH-4F0104 | Unmanaged Industrial Switch, 1x100Mbps SFP Port, 4×10/100M RJ45 Port |
| TH-4F0108 | Unmanaged Industrial Switch, 1x100Mbps SFP Port, 8×10/100M RJ45 Port |
| TH-4F0204 | Unmanaged Industrial Switch, 2x100Mbps SFP Port, 4×10/100M RJ45 Port |
| Provider Mode Ports | |
| Power Interface | Phoenix terminal, Dual power input |
| LED Indicators | PWR, Link/ACT LED |
| Port Isolation | Support |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e, CAT6) |
| Mono-mode Optical Fiber | 20/40/60/80/100KM |
| Multi-mode Optical Fiber | 550m |
| Network Topology | |
| Ring Topology | Not support |
| Star Topology | Support |
| Bus Topology | Support |
| Hybrid Topology | Support |
| Tree Topology | Support |
| Electrical Specifications | |
| Input Voltage | Redundant DC12-58V input |
| Total Power Consumption | <5W |
| Layer 2 Switching | |
| Switching Capacity | 14Gbps/20Gbps |
| Packet Forwarding Rate | 10.416Mpps/14.88Mpps |
| MAC Address Table | 2K/8K/16K |
| Buffer | 1M/2M |
| Forwarding Delay | <5us |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10K bytes |
| LFP | Support |
| Storm Control | Support |
| DIP Switch | |
| 1 LFP | LFP/ Remote PD Reset |
| 2 LGY | LEGACY (Standard & Non-standard PoE) |
| 3 VLAN | Port Isolation |
| 4 BSR | Storm Control Configuration |
| Environment | |
| Operating Temperature | -30℃~+75℃ |
| Storage Temperature | -30℃~+85℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Thermal Methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |

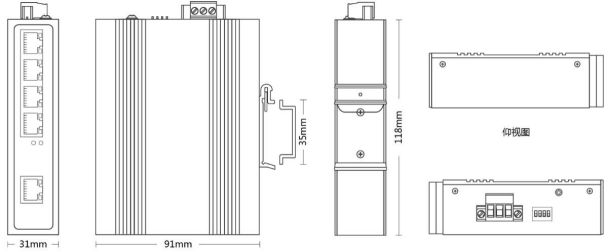

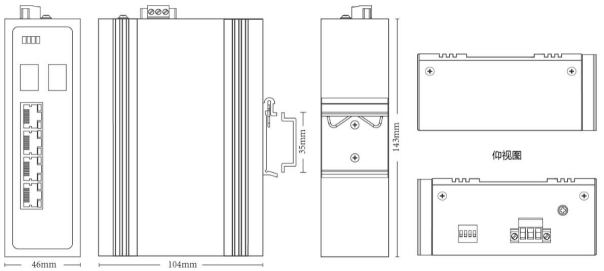

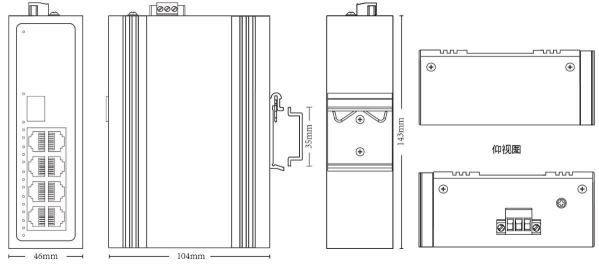

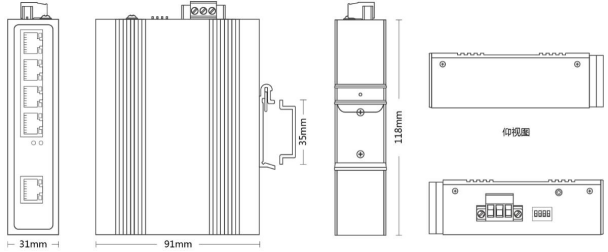

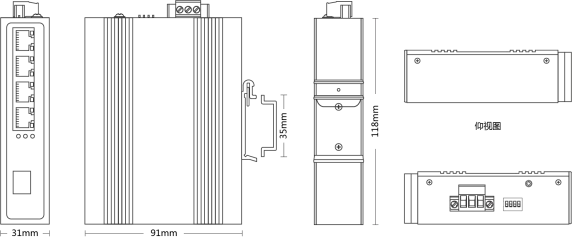

| Product Size | 118*91*31mm/143*104*46mm |
| Installation Method | Din-Rail |
| Net Weight | 0.36KGs/0.55KGs |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge Protection of Power | IEC 61000-4-5 Level X (6KV/4KV) (8/20us) |
| Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall | 0.5m |
| Certificate | |
| Security Certificate | CE, FCC, RoHS |
