TH-6F Series Industrial Switch
The TH-6F Series Industrial Ethernet PoE Switch is a performance powerhouse that delivers reliable power solutions for SMBs deploying Power over Ethernet networks. Thanks to its fan-less and energy-saving design, this Ethernet switch is the ideal choice for businesses that need power efficiency without sacrificing performance.
Despite its compact size, this switch delivers exceptional reliability, making it perfect for continuous industrial operation in harsh environments. Whether you need to deploy it in transportation control cabinets, factory floors, outdoors, or any other low or high temperature environment that ranges from -40℃ to +75℃, the TH-6F is built to withstand tough conditions and perform flawlessly.
This switch offers ease of maintenance and unrivaled convenience, so you can spend more time focusing on your business. The TH-6F also comes with top-notch security features that protect your network and data from unauthorized access.
● Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
● Auto- MDI/ MDI-X detection and negotiation in half-duplex/full-duplex modes for 10/ 100Base-TX RJ-45 port
● Features Store-and- Forward mode with wire-speed filtering and forwarding rates
● Supports packet size of up to 10K bytes
● Robust IP40 protection, fan-less design, high/low temperature resistance -40℃~ +75℃
● DC48V-58V input
● CSMA/CD protocol
● Automatic source address learning and aging
| P/N | Fixed Port |
| TH-6F0005(P) | 5*10/100Mbps Ethernet Port (4xPoE ) |
| TH-6F0008(P) | 8*10/100Mbps Ethernet Port (8xPoE ) |
| TH-6F0104(P) | 4*10/100Mbps Ethernet PoE Port, 1*1000Mbps SFP Port |
| TH-6F0108(P) |
8*10/100Mbps Ethernet PoE Port, 1*1000Mbps SFP Port |
| TH-6F0204(P) | 4*10/100Mbps Ethernet PoE Port, 2*1000Mbps SFP Port |
| TH-6F0208(P) | 8*10/100Mbps Ethernet PoE Port, 2*1000Mbps SFP Port |
| TH-6F0408(P) | 8*10/100Mbps Ethernet PoE Port, 4*1000Mbps SFP Port |
| Provider Mode Ports | |
| Power Interface | Phoenix terminal, Dual power input |
| LED Indicators | PWR, OPT, NMC, ALM |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e, CAT6) |
| Mono-mode Optical Fiber | 20/40/60/80/100KM |
| Multi-mode Optical Fiber | 550m |
| Network Topology | |
| Ring Topology | Not support |
| Star Topology | Support |
| Bus Topology | Support |
| Tree Topology | Support |
| PoE Support | |
| PoE Port | 1-4/1-8 |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Pin Assignment | 1, 2, 3, 6 |
| Input Voltage |
DC48-58V input |
| Total Power Consumption | <126W/<246W/<250W |
| Layer 2 Switching | |
| Switching Capacity | 10Gbps/14Gbps/26Gbps/36Gbps |
| Packet Forwarding Rate | 7.44Mpps/19.34Mpps/10.416Mpps/26.78Mpps |
| MAC Address Table | 8K/16K |
| Buffer | 1M/2M/12M |
| Forwarding Delay | <5us/<10us |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10K bytes |
| Port Isolation | Support |
| DIP Switch | |
| 1 I/R | Remote PD Reset |
| 2 VLAN | VLAN |
| 3 Q/I | Port Isolation |
| 4 F/P | VIP Power Supplying & QoS |
| Environment | |
| Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Thermal Methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product Size | 143*104*48mm |
| Installation Method | Din-Rail |
| Net Weight | 0.6KGs/0.7KGs |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge Protection of Power | IEC 61000-4-5 Level X (6KV/4KV) (8/20us) |
| Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
| RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
| DIP | IEC 61000-4-11 Level 3 (10V) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall | 0.5m |
| Certificate | |
| Security Certificate | CE, FCC, RoHS |

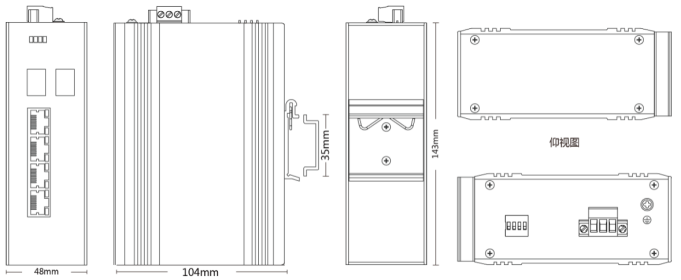

TH-6F0005P

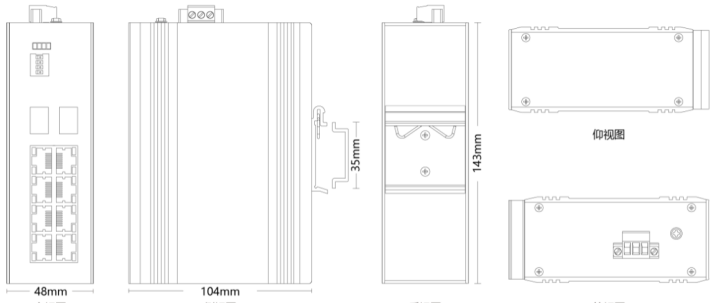

TH-6F0008P

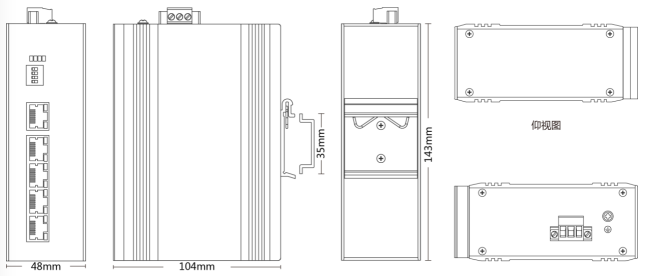

TH-6F0104P

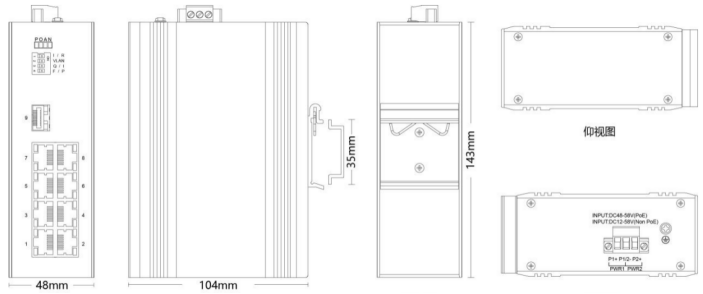

TH-6F0108P
TH-6F0204P
TH-6F0208P
TH-6F0408P
