TH-G712-4SFP Industrial Ethernet Switch
TH-G712-4SFP is a new generation Industrial L3 Managed Ethernet Switch with 8-Port 10/100/1000Bas-TX and 4-Port 100/1000 Base-FX Fast SFP that provide flexible connectivity options for industrial networks that require fiber-optic connections.
These ports support both multimode and single-mode fiber-optic cables, and can be used to extend network distances up to several kilometers.
TH-G712-4SFP also supports Layer 3 routing protocols, including OSPF, RIP, and BGP.
This allows it to route traffic between different networks and provide advanced routing capabilities for more complex industrial networks.
• 8×10/100/1000Base-TX RJ45 ports, 4×100/1000Base-FX Fast SFP ports
• Support 4Mbit packet buffer.
• Support 10K bytes jumbo frame
• Support IEEE802.3az energy-efficient Ethernet technology
• Support IEEE 802.3D/W/S standard STP/RSTP/MSTP protocol
• 40~75°C operation temperature for harsh environment
• Support ITU G.8032 standard ERPS Redundant Ring protocol
• Power input polarity protection design
• Aluminum case, no fan design
• Installation method: DIN Rail /Wall mounting
| Model Name | Description |
| TH-G712-4SFP |
Industrial Light-Layer3 managed switch with 8×10/100/1000Base-TX RJ45 ports and 4×100/1000Base-FX SFP ports dual input voltage 9～56VDC |
| TH-G712-8E4SFP | Industrial Light-Layer3 managed switch with 8×10/100/1000Base-TX POE RJ45 ports and 4×100/1000Base-FX SFP ports dual inputvoltage 48～56VDC |
| TH-G712-4SFP-H | Industrial Light-Layer3 managed switch with 8×10/100/1000Base-TX RJ45 ports and 4×100/1000Base-FX SFP ports single inputvoltage 100～240VAC |
| Ethernet Interface | |
| Ports | 8×10/100/1000BASE-TX RJ45 ports and 4×100/1000Base-FX SFP |
| Power input terminal | Six-pin terminal with 5.08mm pitch |
| Standards | IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Packet Buffer Size | 4M |
| Maximum Packet Length | 10K |
| MAC Address Table | 8K |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time < 7μs |
| Backplane bandwidth | 24Gbps |
| POE（optional） | |
| POE standards | IEEE 802.3af/IEEE 802.3at POE |
| POE Consumption | max 30W per port |
| Power | |
| Power Input | Dual power input 9-56VDC for non-POE and 48~56VDC for POE |
| Power consumption | Full Load<15W （non-POE); Full Load<255W （POE) |
| Physical Characteristics | |
| Housing | Aluminum case |

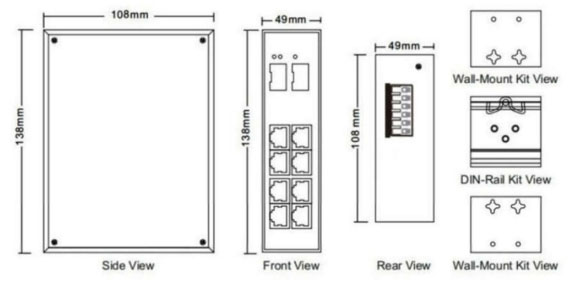

| Dimensions | 138mm x 108mm x 49mm (L x W x H) |
| Weight | 680g |
| Installation Mode | DIN Rail and Wall Mounting |
| Working Environment | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Warranty | |
| MTBF | 500000 hours |
| Defects Liability Period | 5 years |
| Certification Standard | FCC Part15 Class A IEC 61000-4-2（ ESD）： Level 4CE-EMC/LVD IEC 61000-4-3（ RS）： Level 4
ROSH IEC 61000-4-2（ EFT）： Level 4 IEC 60068-2-27（Shock） IEC 61000-4-2（ Surge）： Level 4 IEC 60068-2-6（Vibration） IEC 61000-4-2（ CS）： Level 3 IEC 60068-2-32（Free fall） IEC 61000-4-2（ PFMP）： Level 5 |
| Software Function | Redundant Network：support STP/RSTP，ERPS Redundant Ring，recovery time < 20ms |
| Multicast ：IGMP Snooping V1/V2/V3 | |
| VLAN：IEEE 802.1Q 4K VLAN，GVRP ,GMRP,QINQ | |
| Link Aggregation：Dynamic IEEE 802.3ad LACP LINK Aggregation, Static Link Aggregation | |
| QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA | |
| Management Function: CLI, Web based management, SNMP v1/v2C/V3, Telnet/SSH server for management | |
| Diagnostic Maintenance: port mirroring, Ping Command | |
| Alarm management: Relay warning, RMON , SNMP Trap | |
| Security: DHCP Server/Client，Option 82， support 802.1X，ACL ,support DDOS， | |
| Software update via HTTP, redundant firmware to avoid upgrade failure | |
| Layer 3 function | three-layer routing protocols |
