TH-6G0202 Industrial Switch 2xGigabit SFP, 2×10/ 100/ 1000Base-T

Model Number:TH-6G0202

Brand: Todahika

  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Supports packet size of up to 2K bytes

Product Detail


Ordering Information



Product Tags

Product Description

TH-6G0202 Industrial Ethernet Switch, is a high-performance, compact and reliable network switch designed for industrial applications.

It has 2x Gigabit SFP and 2x 10/100/1000Base-T Ethernet ports, providing fast data transfer rates for demanding network applications.

It is fan-less and energy-saving design, provide reliable power solution for SMBs deploying Power over Ethernet networks.

It is small, convenient and easy to maintain and offers high reliability and security to guarantee the continuous industrial operation in harsh environments from -40℃~ +75℃,is an excellent choice for network connectivity in industrial settings such as control cabinet of transportation, factory floors, outdoors, or other low or high temperature environments.


  • Previous:
  • Next:

  • ●   Complies with the IEEE 802.3, IEEE 802.3u

    ●    Auto-MDI/MDI-X detection and negotiation in half/full-duplex modes for 10/100/1000Base-TX RJ-45 port

    ●    Features Store-and-Forward mode with wire-speed filtering and forwarding rates

    ●    Supports packet size of up to 10K bytes

    ●    Robust IP40 protection, fan-less design, high/low temperature resistance -40℃~ +75℃

    ●    DC12V-58V input

    ●    CSMA/CD protocol

    P/N Description
    TH-6G0202 Unmanaged Industrial Switch2x1000Mbps SFP Port, 2x10/100/1000M RJ45 Port
    TH-6G0202P Unmanaged Industrial PoE Switch2x1000Mbps SFP Port, 2x10/100/1000M RJ45 Port PoE
    Provider Mode Ports
    Fixed Port 2*10/100/1000Mbps Ethernet Port, 2*1000Mbps SFP Port
    Power Interface Phoenix terminal, Dual power input
    LED Indicators PWR, OPT, NMC, ALM
    Cable Type & Transmission Distance
    Twisted-pair 0-100m (CAT5e, CAT6)
    Mono-mode Optical Fiber 20/40/60/80/100KM
    Multi-mode Optical Fiber 550m
    Network Topology
    Ring Topology Not support
    Star Topology Support
    Bus Topology Support
    Tree Topology Support
    Layer 2 Switching
    Switching Capacity                        14Gbps
    Packet Forwarding Rate                   10.416Mpps
    MAC Address Table                 8K
    Buffer                                    1M
    Forwarding Delay                          <5us
    MDX/MIDX                 Support
    Jumbo Frame                              Support 10K bytes
    Port Isolation Support
    DIP Switch
    1 I/R                           Port Isolation
    VLAN                            VLAN
    3 Q/I                                         QoS
    4 F/P                                              Flow Control
    Operating Temperature                   -40~+75
    Storage Temperature               -40~+85
    Relative Humidity                          10%~95% (non-condensing)
    Thermal Methods                         Fanless design, natural heat dissipation
    MTBF                                                    100,000 hours
    Power Consumption <6w

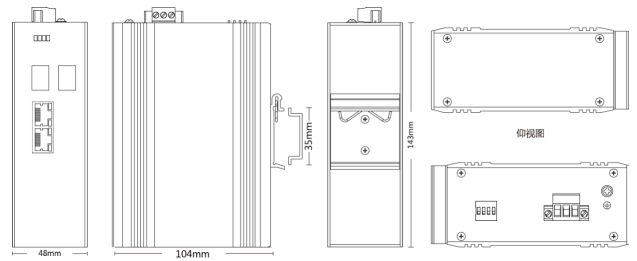

    Mechanical Dimensions
    Product Size                                    143*104*48mm
    Installation Method                      Din-Rail
    Net Weight                                         0.6KGs
    EMC & Ingress Protection
    IP Level IP40
    Surge Protection of Power IEC 61000-4-5 Level X (6KV/4KV) (8/20us)
    Surge Protection of Ethernet Port IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us)
    RS IEC 61000-4-3 Level 3 (10V/m)
    EFI IEC 61000-4-4 Level 3 (1V/2V)
    CS IEC 61000-4-6 Level 3 (10V/m)
    PFMF IEC 61000-4-8 Level 4 (30A/m)
    DIP IEC 61000-4-11 Level 3 (10V)
    ESD IEC 61000-4-2 Level 4 (8K/15K)
    Free Fall 0.5m
    Security Certificate CE, FCC, RoHS
