TH-G510-2SFP Industrial Ethernet Switch
TH-G510-2SFP is a new generation Industrial Managed Ethernet Switch with 8-Port 10/100/1000Bas-TX and 2-Port 100/1000 Base-FX Fast SFP that provide stable reliable Ethernet transmission ,supports multiple connection types, including Ethernet and fiber ports allowing it to connect to a variety of devices, It features a rugged and durable design that can operate in harsh industrial environments, withstanding extreme temperatures, humidity, vibration and electromagnetic interference .Also it is suitable for a wide range of industrial applications.
● Eight × 10/100/1000Base-TX RJ45 port, 2 × 100/1000Base-FX fast SFP ports and 2 RS485/232/433 port switches. Through its 8 RJ45 ports, you can simultaneously connect multiple devices such as computers, printers, and IP cameras.
● It also has 2 fast SFP ports, providing high-speed data transmission for your network. This switch is designed specifically for handling high data traffic and is equipped with a 4Mbit packet buffer, ensuring smooth and uninterrupted performance
● It supports 10K byte Jumbo frame, allowing efficient data transmission, especially in large-scale networks. This switch adopts the latest IEEE802.3az energy-saving Ethernet technology, which can intelligently manage power consumption and reduce energy costs without affecting performance
● It complies with the IEEE 802.3D/W/S standard STP/RSTP/MSTP protocol, providing reliable and secure network connections. The working temperature range is -40~75 ° C, suitable for harsh environments
| Model Name | Description |
| TH-G510-2SFP | Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports and 2×100/1000Base-FX SFP ports dual input voltage 9～56VDC |
| TH-G510-8E42FP | Industrial managed switch with 8×10/100/1000Base-TX POE RJ45 ports and 2×100/1000Base-FX SFP ports dual input voltage 48～56VDC |
| TH-G510-2SFP-H | Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports and 2×100/1000Base-FX SFP ports single input voltage100～240VAC |
| Ethernet Interface | ||
| Ports | 8×10/100/1000BASE-TX RJ45, 2x1000BASE-X SFP | |
| Power input terminal | Six-pin terminal with 5.08mm pitch | |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
|
| Packet Buffer Size | 4M | |
| Maximum Packet Length | 10K | |
| MAC Address Table | 8K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time < 7μs | |
| Backplane bandwidth | 24Gbps | |
| POE（optional） | ||
| POE standards | IEEE 802.3af/IEEE 802.3at POE | |
| POE Consumption | max 30W per port | |
| Power | ||
| Power Input | Dual power input 9-56VDC for non-POE and 48~56VDC for POE | |
| Power consumption | Full Load<15W （non-POE); Full Load<255W （POE) | |
| Physical Characteristics | ||
| Housing | Aluminum case | |

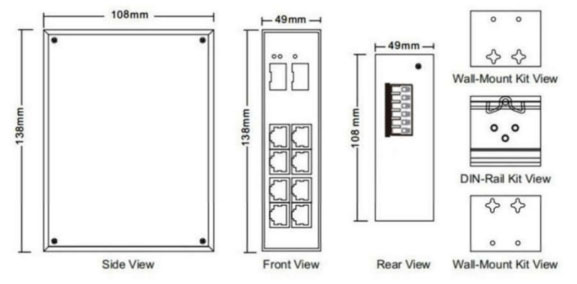

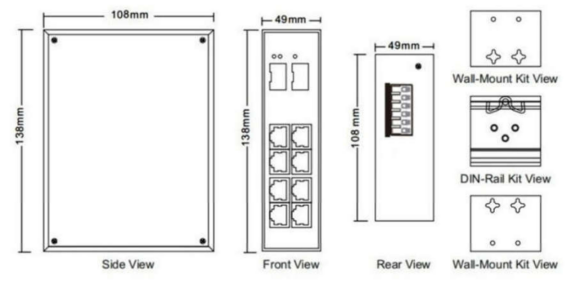

| Dimensions | 138mm x 108mm x 49mm (L x W x H) | |
| Weight | 680g | |
| Installation Mode | DIN Rail and Wall Mounting | |
| Working Environment | ||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | |
| Warranty | ||
| MTBF | 500000 hours | |
| Defects Liability Period | 5 years | |
| Certification Standard | FCC Part15 Class A
CE-EMC/LVD ROSH IEC 60068-2-27（Shock） IEC 60068-2-6（Vibration） IEC 60068-2-32（Free fall） |
IEC 61000-4-2（ ESD）： Level 4
IEC 61000-4-3（ RS）： Level 4 IEC 61000-4-2（ EFT）： Level 4 IEC 61000-4-2（ Surge）： Level 4 IEC 61000-4-2（ CS）： Level 3 IEC 61000-4-2（ PFMP）： Level 5 |
| Software Function | Redundant Network：support STP/RSTP，ERPS Redundant Ring，recovery time < 20ms | |
| Multicast ：IGMP Snooping V1/V2/V3 | ||
| VLAN：IEEE 802.1Q 4K VLAN，GVRP ,GMRP,QINQ | ||
| Link Aggregation：Dynamic IEEE 802.3ad LACP LINK Aggregation, Static Link Aggregation | ||
| QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA | ||
| Management Function: CLI, Web based management, SNMP v1/v2C/V3, Telnet/SSH server for management | ||
| Diagnostic Maintenance: port mirroring, Ping Command | ||
| Alarm management: Relay warning, RMON, SNMP Trap | ||
| Security: DHCP Server/Client，Option 82， support 802.1X，ACL ,support DDOS， | ||
| Software update via HTTP, redundant firmware to avoid upgrade failure | ||
