TH-810G Series Industrial Rack-mount Managed Ethernet Switch
Introducing the TH-810G series, the ultimate solution to meet high-performance network demands in industrial environments. This rackmount Ethernet switch is specifically designed to meet the demands of today's data-intensive applications.
With the growing demand for faster and more reliable network solutions, the TH-810G series is at the forefront of technology. Featuring 10 Gb Ethernet capability, the switch provides lightning-fast data transfer speeds, ensuring network infrastructure with minimal congestion and maximum efficiency.
The switch is designed for versatility and can be deployed in various scenarios. Whether you need a high-performance data center, a campus environment with many users, or a network connecting multiple remote locations, the TH-810G series can meet your needs. It is a powerful and versatile networking tool capable of meeting the needs of any application.
● Redundant power DC12-58V and AC100~240V input.
● Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/Port Mirroring/ DHCP Multicast/ ACL/IGMP /QoS /LLDP /802.1X /Dying Gasp /SFP DDM /IPV6 /Web /SNMP /Telnet /TFTP management.
● Support 6KV surge protection and ESD Air-15kV, Contact-8kV Protection.
● Operate temperature -40℃ ~ +75℃.
● Shell IP40 protection level, fan-less design.
| P/N | Fixed Port |
| TH-810G4C0816M2 | 16×10/100/1000 Base-T, 8xGE Combo, 4x1G/2.5G/10G Base-X SFP+ |
| TH-810G0416C08M2 | 8x1000M Combo(RJ45/SFP), 16x1G SFP, 4x1G/2.5G/10G SFP+ |
| TH-810G0424M2 | 24×10/100/1000 Base-T, 4x1G/2.5G/10G Base-X SFP+ |
| TH-810G0448M2 | 48 x 10/100/1000 Base-T, 4 x 1G/2.5G/10G Base-X SFP+ |
| Provider Mode Ports | ||
| Description | Industrial Managed Rack-mount Ethernet Switch | |
| Management Port | Support Console | |
| Power Interface | Phoenix terminal, redundant dual power supply | |
| LED Indicators | PWR, Link/ACT LED | |
| Cable Type & Transmission Distance | ||
| Twisted-pair | 0-100m (CAT5e, CAT6) | |
| Monomode Optical Fiber | 20/40/60/80/100KM | |
| Multimode Optical Fiber | 550m | |
| Electrical Specifications | ||
| Input Voltage | Dual Power DC12-58V, AC100~240V 50/60HZ input | |
| Total Power Consumption | <36W | |
| Layer 2 Switching | ||
| Switching Capacity | 160G/336G | |
| Packet Forwarding Rate | 95.23Mpps/144Mpps | |
| MAC Address Table | 16K | |
| Buffer | 12M | |
| Forwarding Delay | <10us | |
| MDX/MIDX | Support | |
| Flow Control | Support | |
| Jumbo Frame | Support 10Kbytes | |
| Port Aggregation | Support GE port, 2.5GE
Support static and dynamic aggregation |
|
| Port Features | Support IEEE802.3x flow control, Port traffic statistics, port isolation
Support network storm suppression based on port bandwidth percentage |
|
| VLAN | Support 4K | |
| VLAN Classification | Mac Based VLAN
IP Based VLAN Protocol Based VLAN |
|
| QinQ | Basic QinQ (Port-based QinQ)
Flexible Q in Q(VLAN-based QinQ) QinQ(Flow-based QinQ) |
|
| Port Mirroring | Many to one (Port Mirroring) | |
| Spanning Tree | Support STP, RSTP, MSTP | |
| DHCP | DHCP Client
DHCP Snooping |
|
| Multicast | IGMP snooping | |
| ACL | Support ACL 500
Support IP standard ACL Support MAC expand ACL Support IP expand ACL |
|
| QoS | QoS Class, Remarking
Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Policy-based QoS |
|
| Security | Support Dot1x, port authentication, MAC authentication
and RADIUS service Support port-security Support ip source guard, IP/Port/MAC binding Support arp-check and ARP packet filtering for illegal users Support port isolation |
|
| Management and Maintenance | Support LLDP
Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON (Remote Monitoring) alarm, event and history record Support NTP Support temperature monitoring Support Ping, Tracert Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support TFTP, WEB upgrading |
|
| Environment | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -40℃~+85℃ | |
| Relative Humidity | 5%~95% (non-condensing) | |
| Thermal Methods | Fan-less design, natural heat dissipation | |
| MTBF | 100,000 hours | |

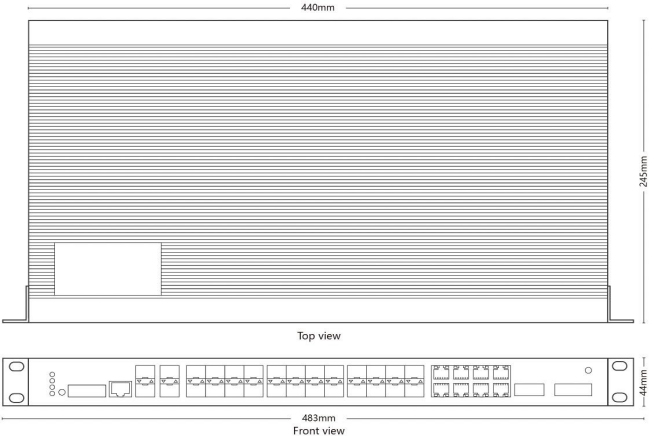

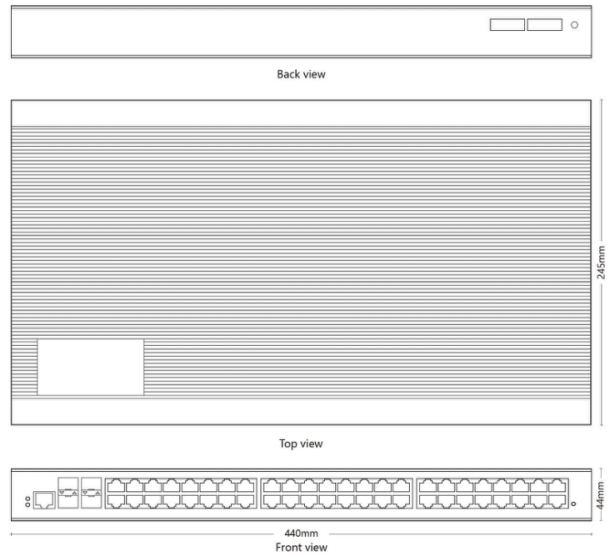

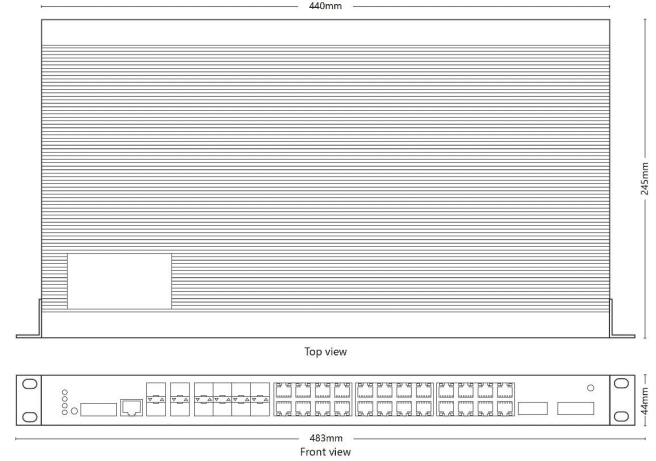

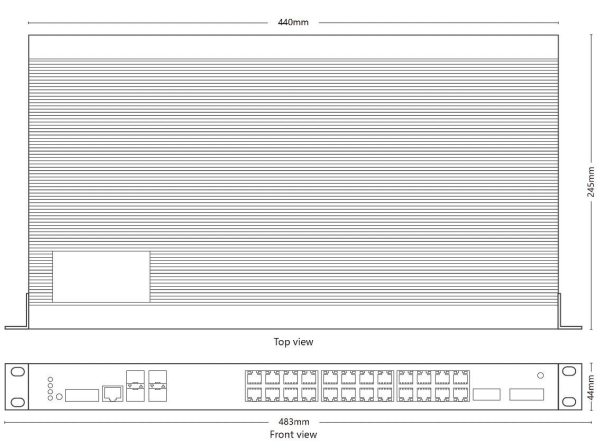

| Mechanical Dimensions | ||
| Product Size | 440*245*44mm | |
| Installation Method | Rack-mount | |
| Net Weight | 3.65KGs | |
| Packaging Info | 5PCS/CTN, Carton Dim. 51*58.5*36.8cm, 24.8KGS/CTN | |
| EMC & Ingress Protection | ||
| IP Level | IP40 | |
| Surge Protection of Power | IEC 61000-4-5 | Level X (8KV/8KV) (8/20us) |
| Surge Protection of Ethernet Port | IEC 61000-4-5 | Level 3 (4KV/2KV) (10/700us) |
| RS | IEC 61000-4-3 | Level 3 (10V/m) |
| EFI | IEC 61000-4-4 | Level 3 (1V/2V) |
| CS | IEC 61000-4-6 | Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 | Level4 (30A/m) |
| DIP | IEC 61000-4-11 | Level3 (10V) |
| ESD | IEC 61000-4-2 | Level 4 (8K/15K) |
| Free Fall | 0.5m | |
| Certificates | ||
| Certificates | CE/FCC/RoHS/UKCA | |
