TH-4F0102 Industrial Media Converter 1 x 100Base-X SFP, 2 x 10/100Base-T
With its advanced store-and-forward architecture, the media converter ensures a seamless and reliable connection, enabling efficient data transmission across various broadband networks. The fanless energy-saving design not only reduces power consumption, but also eliminates noise, making it ideal for noise-sensitive environments.
One of the main advantages of this product is its compact and convenient size. The TH-4F0102 Industrial Ethernet Media Converter has a compact and lightweight design, allowing for easy installation and flexible deployment in any space-constrained areas. In addition, its user-friendly interface and simple maintenance procedures make it very easy to operate and maintain.
Operating under extreme conditions is no challenge for the TH-4F0102 Industrial Ethernet Media Converter. The media converter has an excellent abi
● Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard.
● Auto- MDI/ MDI-X detection and negotiation in half-duplex/full-duplex modes for 10/ 100Base-TX RJ-45 port.
● Features Store-and- Forward mode with wire-speed filtering and forwarding rates.
● Supports packet size of up to 2K bytes.
● Robust IP40 protection, fan-less design, high/low temperature resistance -30℃~ +75℃.
● Wide power supply input DC12V-58V redundant.
● CSMA/CD protocol.
● Automatic source address learning and aging.
| P/N | Description |
| TH-4F0102 | Unmanaged Industrial Media Converter1x100Mbps SFP Port, 2×10/ 100M RJ45 Port |
| TH-4F0102P | Unmanaged Industrial PoE Media Converter1x100Mbps SFP Port, 2×10/ 100M RJ45 Port PoE |
|
Provider Mode Ports |
|
|
Fixed Port |
2*10/100Mbps Ethernet Port, 1*100Mbps SFP Port |
|
Power Interface |
Phoenix terminal, Dual power input |
|
LED Indicators |
P1, P2, OPT |
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m (CAT5e, CAT6) |
|
Mono-mode Optical Fiber |
20/40/60/80/100KM |
|
Multi-mode Optical Fiber |
550m |
|
Network Topology |
|
|
Ring Topology |
Not support |
|
Star Topology |
Support |
|
Bus Topology |
Support |
|
Tree Topology |
Support |
|
Electrical Specifications |
|
|
Input Voltage |
Redundant DC12-58V input |
|
Total Power Consumption |
<5W |
|
Layer 2 Switching |
|
|
Switching Capacity |
1Gbps |
|
Packet Forwarding Rate |
0.446Mpps |
|
MAC Address Table |
2K |
|
Buffer |
768K |
|
Forwarding Delay |
<5us |
|
MDX/MIDX |
Support |
|
Jumbo Frame |
Support 2K bytes |
|
LFP |
Support |
|
Storm Control |
Support |
|
Port Isolation |
Support |
|
DIP Switch |
|
|
1 LFP |
LFP/ Remote PD Reset |
|
2 LGY |
LEGACY (Standard & Non-standard PoE) |
|
3 VLAN |
Port Isolation |
|
4 BSR |
Storm Control Configuration |
|
Environment |
|
|
Operating Temperature |
-30℃~+75℃ |
|
Storage Temperature |
-30℃~+85℃ |
|
Relative Humidity |
10%~95% (non-condensing) |
|
Thermal Methods |
Fanless design, natural heat dissipation |
|
MTBF |
100,000 hours |
|

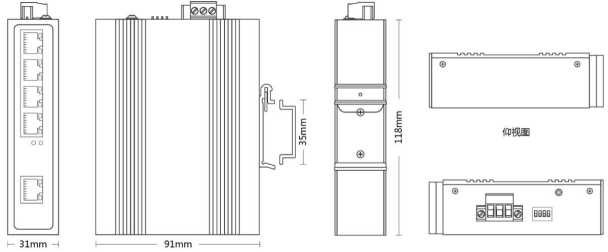

Mechanical Dimensions |
|
|
Product Size |
118*91*31mm |
|
Installation Method |
Din-Rail |
|
Net Weight |
0.36KGs |
|
EMC & Ingress Protection |
|
|
IP Level |
IP40 |
|
Surge Protection of Power |
IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) |
|
Surge Protection of Ethernet Port |
IEC 61000-4-5 Level 3 (4KV/2KV) (10/700us) |
|
ESD |
IEC 61000-4-2 Level 4 (8K/15K) |
|
Free Fall |
0.5m |
|
Certificate |
|
|
Security Certificate |
CE, FCC, RoHS |
