TH-G506-2SFP Smart Industrial Ethernet Switch
TH-G506-2SFP is a new generation industrial Power over Ethernet switch with 4-Port 10/100/1000Bas-TX and 2-Port 100/1000 Base-FX Fast SFP that provide stable reliable Ethernet transmission.
It provides flexibility for different types of network connections. This switch is also managed, which means that it can be configured and monitored for optimal performance. It typically supports advanced features such as VLAN, QoS management, and can also support protocols such as RSTP and STP for redundancy and fast recovery in case of network failures.
● 4×10/100/1000Base-TX RJ45 ports and 2×100/1000Base-FX Fast SFP ports switch. This impressive switch features a DIP Switch that supports RSTP/VLAN/SPEED, allowing for maximum flexibility and customization. With support for 9K bytes jumbo frame, this switch is compatible with various extension protocols, making it an ideal solution for a wide range of networking needs.
● Additionally, our switch incorporates the IEEE802.3az energy-efficient Ethernet technology, ensuring optimal energy consumption and reducing environmental impact. Designed with a focus on durability and reliability, this switch features electric 4KV surge protection, making it suitable for use in outdoor environments where the risk of electrical surges is high.
● Moreover, our product includes a power input polarity protection design, offering an extra layer of safety during installation and operation. The aluminum case and fan-less design ensure efficient heat dissipation
| Model Name | Description |
| TH-G506-2SFP | 4×10/100/1000Base-TX RJ45 ports, 2×100/1000Base-FX SFP ports with DIP Switch, input voltage 9～56VDC |
| TH-G506-4E2SFP | 4×10/100/1000Base-TX POE RJ45 ports, 2×100/1000Base-FX SFP ports with DIP Switch, input voltage 48～56VDC |
| Ethernet Interface | ||
| Ports | 4×10/100/1000BASE-TX RJ45, 2x1000BASE-X SFP | |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
|
| Packet Buffer Size | 2M | |
| Maximum Packet Length | 16K | |
| MAC Address Table | 4K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time: < 7μs | |
| Backplane bandwidth | 20Gbps | |
| POE（optional） | ||
| POE standards | IEEE 802.3af/IEEE 802.3at POE | |
| POE consumption | Each port max 30W | |
| Power | ||
| Power Input | Dual power input 9-56VDC for non-POE and 48~56VDC for POE | |
| Power consumption | Full Load<10W （non-POE); Full Load<130W （POE) | |
| Physical Characteristics | ||
| Housing | Aluminum case | |

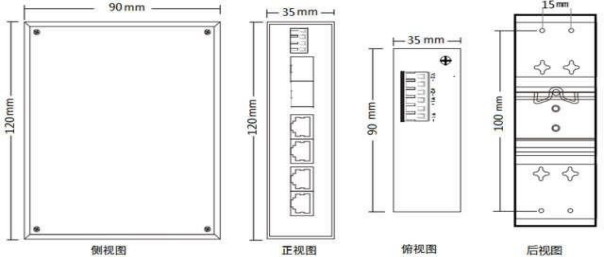

| Dimensions | 120mm x 90mm x 35mm (L x W x H) | |
| Weight | 350g | |
| Installation Mode | DIN Rail and Wall Mounting | |
| Working Environment | ||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | |
| Warranty | ||
| MTBF | 500000 hours | |
| Defects Liability Period | 5 years | |
| Certification Standard | FCC Part15 Class A
CE-EMC/LVD ROSH IEC 60068-2-27（Shock） IEC 60068-2-6（Vibration ） IEC 60068-2-32（Free fall） |
IEC 61000-4-2（ESD）： Level 4
IEC 61000-4-3（RS）： Level 4 IEC 61000-4-2（EFT）： Level 4 IEC 61000-4-2（Surge）： Level 4 IEC 61000-4-2（CS）： Level 3 IEC 61000-4-2（PFMP）： Level 5 |
| Software Function | One Key for RSTP ON/OFF , VLAN ON/OFF, SFP port fixed speed, ON as 100M speed | |
| Redundant Network: STP/RSTP | ||
| Multicast Support: IGMP Snooping V1/V2/V3 | ||
| VLAN: IEEE 802.1Q 4K VLAN | ||
| QOS: Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA | ||
| Management Function: WEB | ||
| Diagnostic Maintenance: port mirroring, Ping | ||
