TH-G712-8E4SFP Industrial Ethernet Switch
TH-G712-8E4SFP is a new generation Industrial L3 Managed Power over Ethernet Switch with 8-Port 10/100/1000Bas-TX and 4-Port 100/1000 Base-FX Fast SFP is ideal for use in a variety of industrial applications, including factory automation, process control and transportation systems.
It is designed to provide reliable and efficient network connectivity for industrial applications, making it an ideal choice for industrial networking.
TH-G712-8E4SFP offers a range of advanced features such as VLANs, QoS, and access control lists (ACLs), which allow network administrators to control access to network resources and prioritize traffic based on application requirements.
The switch also supports SNMP and RMON, making it easy to monitor and manage network performance.
● 8×10/100/1000Base-TX PoE RJ45 ports, 4×100/1000Base-FX Fast SFP ports
● Support 4Mbit packet buffer.
● Support 10K bytes jumbo frame
● Support IEEE802.3az energy-efficient Ethernet technology
● Support IEEE 802.3D/W/S standard STP/RSTP/MSTP protocol
● -40~75°C operation temperature for harsh environment
● Support ITU G.8032 standard ERPS Redundant Ring protocol
● Power input polarity protection design
● Aluminum case, no fan design
● Installation method: DIN Rail /Wall mounting
| Model Name | Description |
| TH-G712-4SFP | Industrial managed switch with 8×10/100/1000Base-TX RJ45 ports and 4×100/1000Base-FX SFP ports dual input voltage 9～56VDC |
| TH-G712-8E4SFP | Industrial managed switch with 8×10/100/1000Base-TX POE RJ45 ports and 4×100/1000Base-FX SFP ports dual input voltage 48～56VDC |
| TH-G712-4SFP-H | Industrial managed switch with 8×10/100/1000Base- TX RJ45 ports and 4×100/1000Base-FX SFP ports single input voltage 100～240VAC |
| Ethernet Interface | |
| Ports | 8×10/100/1000BASE-TX POE RJ45, 4x1000BASE-X SFP |
| Power input terminal | Six-pin terminal with 5.08mm pitch |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Packet Buffer Size | 4M |
| Maximum Packet Length | 10K |
| MAC Address Table | 8K |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time < 7μs |
| Backplane bandwidth | 24Gbps |
| POE（optional） | |
| POE standards | IEEE 802.3af/IEEE 802.3at POE |
| POE Consumption | max 30W per port |
| Power | |
| Power Input | Dual power input 9-56VDC for non-POE and 48~56VDC for POE |
| Power consumption | Full Load<15W （non-POE); Full Load<255W （POE) |
| Physical Characteristics | |
| Housing | Aluminum case |

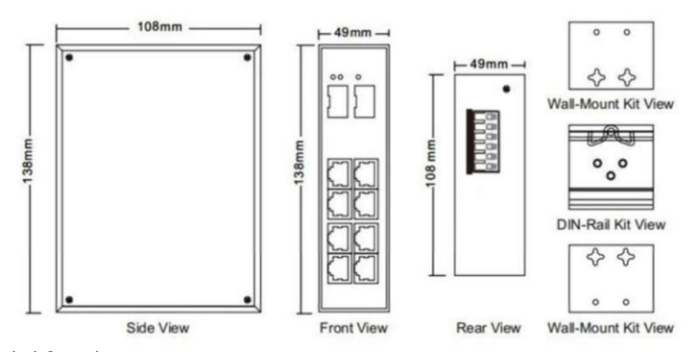

| Dimensions | 138mm x 108mm x 49mm (L x W x H) |
| Weight | 680g |
| Installation Mode | DIN Rail and Wall Mounting |
| Working Environment | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Warranty | |
| MTBF | 500000 hours |
| Defects Liability Period | 5 years |
| Certification Standard | FCC Part15 Class A IEC 61000-4-2（ ESD）： Level 4
CE-EMC/LVD IEC 61000-4-3（ RS）： Level 4 ROSH IEC 61000-4-2（ EFT）： Level 4 IEC 60068-2-27（Shock） IEC 61000-4-2（ Surge）： Level 4 IEC 60068-2-6（Vibration） IEC 61000-4-2（ CS）： Level 3 IEC 60068-2-32（Free fall） IEC 61000-4-2（ PFMP）： Level 5 |
| Software Function | Redundant Network：support STP/RSTP，ERPS Redundant Ring，recovery time < 20ms |
| Multicast ：IGMP Snooping V1/V2/V3 | |
| VLAN：IEEE 802.1Q 4K VLAN，GVRP ,GMRP,QINQ | |
| Link Aggregation：Dynamic IEEE 802.3ad LACP LINK Aggregation, Static Link Aggregation | |
| QOS: Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA | |
| Management Function: CLI, Web based management, SNMP v1/v2C/V3, Telnet/SSH server for management | |
| Diagnostic Maintenance: port mirroring, Ping Command | |
| Alarm management: Relay warning, RMON , SNMP Trap | |
| Security: DHCP Server/Client，Option 82， support 802.1X，ACL ,support DDOS， | |
| Software update via HTTP, redundant firmware to avoid upgrade failure | |
| Lay-3 function | three-layer routing protocols |
