TH-7G Series Industrial Switch
The TH-7G Series industrial Ethernet switch is a high-performing and reliable network device that comes with various advantages. It uses a store-forward architecture that enables efficient data transmission, while the fan-less and energy-saving design ensures silent operation and minimal power consumption. Additionally, the product is designed to comply with Ethernet standards and is equipped with lightning and anti-static protection measures, ensuring the safety of connected devices.
The switch features multiple ports and high-speed connectivity, enabling fast and seamless data transmission. It also supports various functionalities like VLAN, QoS, and data packet filtering, making it a versatile and flexible networking solution.
Configuring and managing the TH-7G Series switch is made easy through a user-friendly web interface or CLI command line. Moreover, the switch is built to perform under different conditions, with a wide operating temperature range of -40℃ ~ +75℃ and reliable performance.
This industrial Ethernet switch is widely applicable in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy, and oil fields. It offers a cost-effective and reliable networking solution that is easy to maintain and convenient to use.
● Robust IP40 protection, fan-less design, store-and-forward
● Support IEEE802.3/ IEEE802.3u/ IEEE802.3ab/IEEE802.3z/ IEEE802.3af, 802.3at, 802.3bt
● Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard
● Panel indicator monitoring the status and help failure analysis
● Support 802. 1x port authentication, support AAA authentication, support TACACS+ authentication
● Support WEB, TELNET, CLI, SSH, SNMP, RMON management
● Surge Protection: 8KV- 15KV
| P/N | Fixed Port |
| TH-7G0204PM2-BT | 4*10/ 100/ 1000Mbps Ethernet PoE Port,2*1000Mbps SFP Port |
| TH-7G0208PM2-BT | 8*10/ 100/ 1000Mbps Ethernet PoE Port,2*1000Mbps SFP Port |
| TH-7G0408PM2-BT | 8*10/ 100/ 1000Mbps Ethernet PoE Port,4*1000Mbps SFP Port |
| TH-7G0424PM2-BT | 24*10/ 100/ 1000Mbps Ethernet PoE Port,4*1000Mbps SFP Port |
| Provider Mode Ports | |
| Power Interface | Phoenix terminal, Dual power input |
| LED Indicators | PWR, OPT, NMC, ALM |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m (CAT5e, CAT6) |
| Mono-mode Optical Fiber | 20/40/60/80/100KM |
| Multi-mode Optical Fiber | 550m |
| Network Topology | |
| Ring Topology | Not support |
| Star Topology | Support |
| Bus Topology | Support |
| Tree Topology | Support |
| PoE Support | |
| PoE Port | 1-4/1-8 |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Pin Assignment | 1, 2, 3, 6 |
| Input Voltage |
DC48-58V input |
| Total Power Consumption | <126W/<246W/<250W |
| Layer 2 Switching | |
| Switching Capacity | 10Gbps/14Gbps/26Gbps/36Gbps |
| Packet Forwarding Rate | 7.44Mpps/19.34Mpps/10.416Mpps/26.78Mpps |
| MAC Address Table | 8K/16K |
| Buffer | 1M/2M/12M |
| Forwarding Delay | <5us/<10us |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10K bytes |
| Port Isolation | Support |
| DIP Switch | |
| 1 I/R | Remote PD Reset |
| 2 VLAN | VLAN |
| 3 Q/I | Port Isolation |
| 4 F/P | VIP Power Supplying & QoS |
| Environment | |
| Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Thermal Methods | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product Size | 143*104*48mm |
| Installation Method | Din-Rail |
| Net Weight | 0.6KGs/0.7KGs |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge Protection of Power | IEC 61000-4-5 Level X (6KV/4KV) (8/20us) |
| Surge Protection of Ethernet Port | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
| RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
| DIP | IEC 61000-4-11 Level 3 (10V) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free Fall | 0.5m |
| Certificate | |
| Security Certificate | CE, FCC, RoHS |

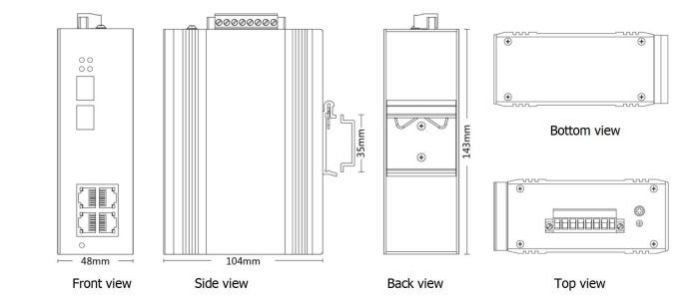

TH-7G0204PM2-BT

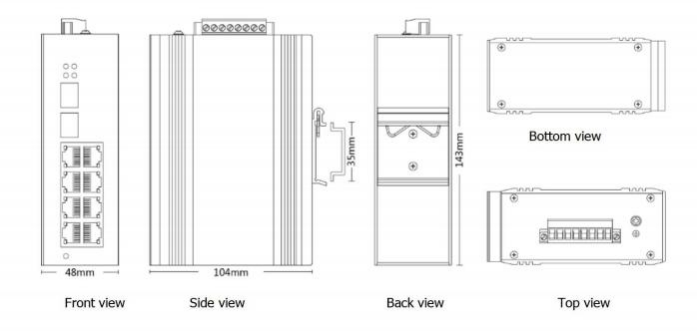

TH-7G0208PM2-BT
TH-7G0408PM2-BT
TH-7G0424PM2-BT
